High-Performance Castings for Railway Applications
Our product range is engineered to deliver strength, precision, and long-term reliability across critical railway systems. Every component is manufactured using advanced molding technologies and strict quality controls to ensure consistent performance in demanding operating conditions.
PRODUCT

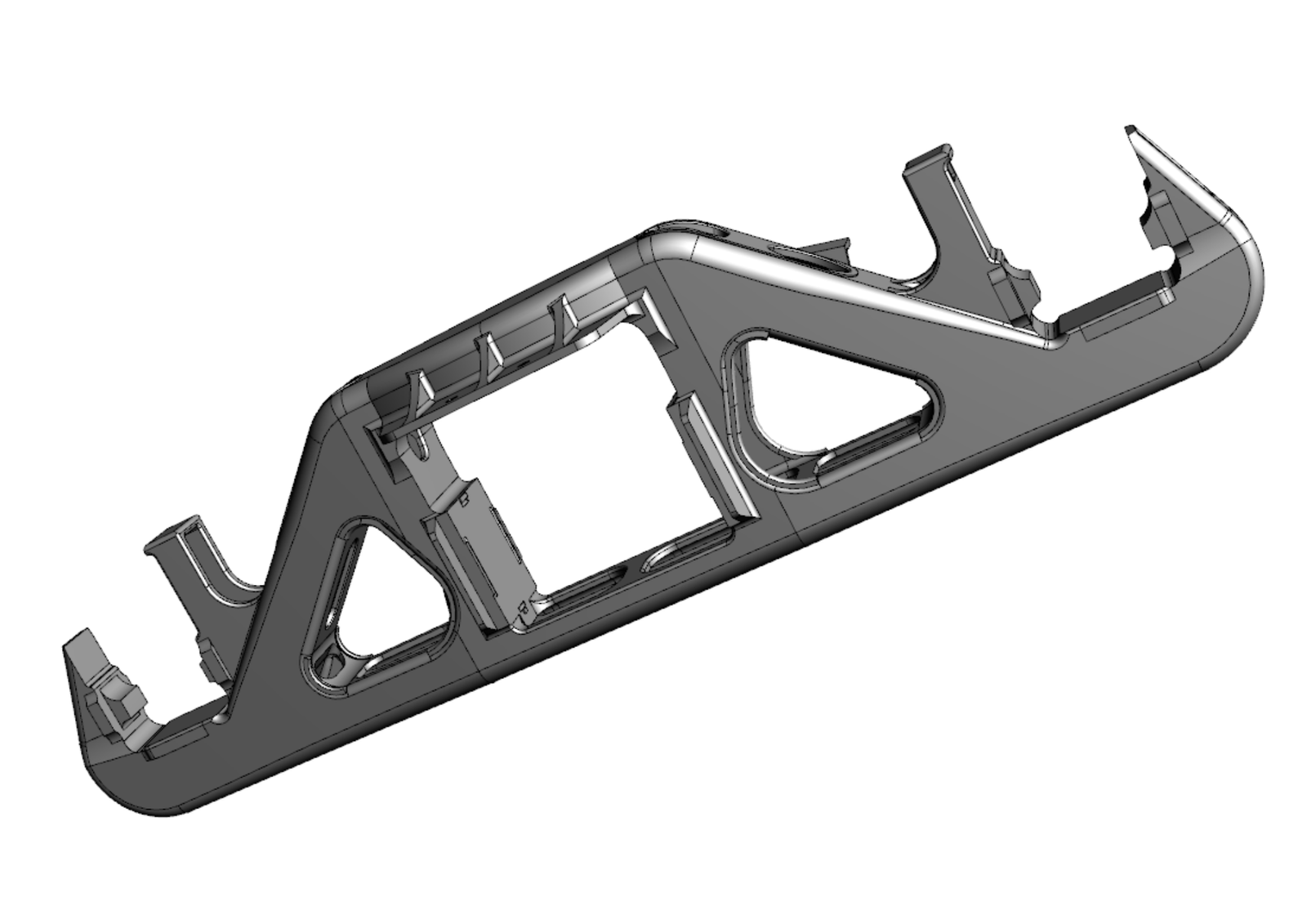

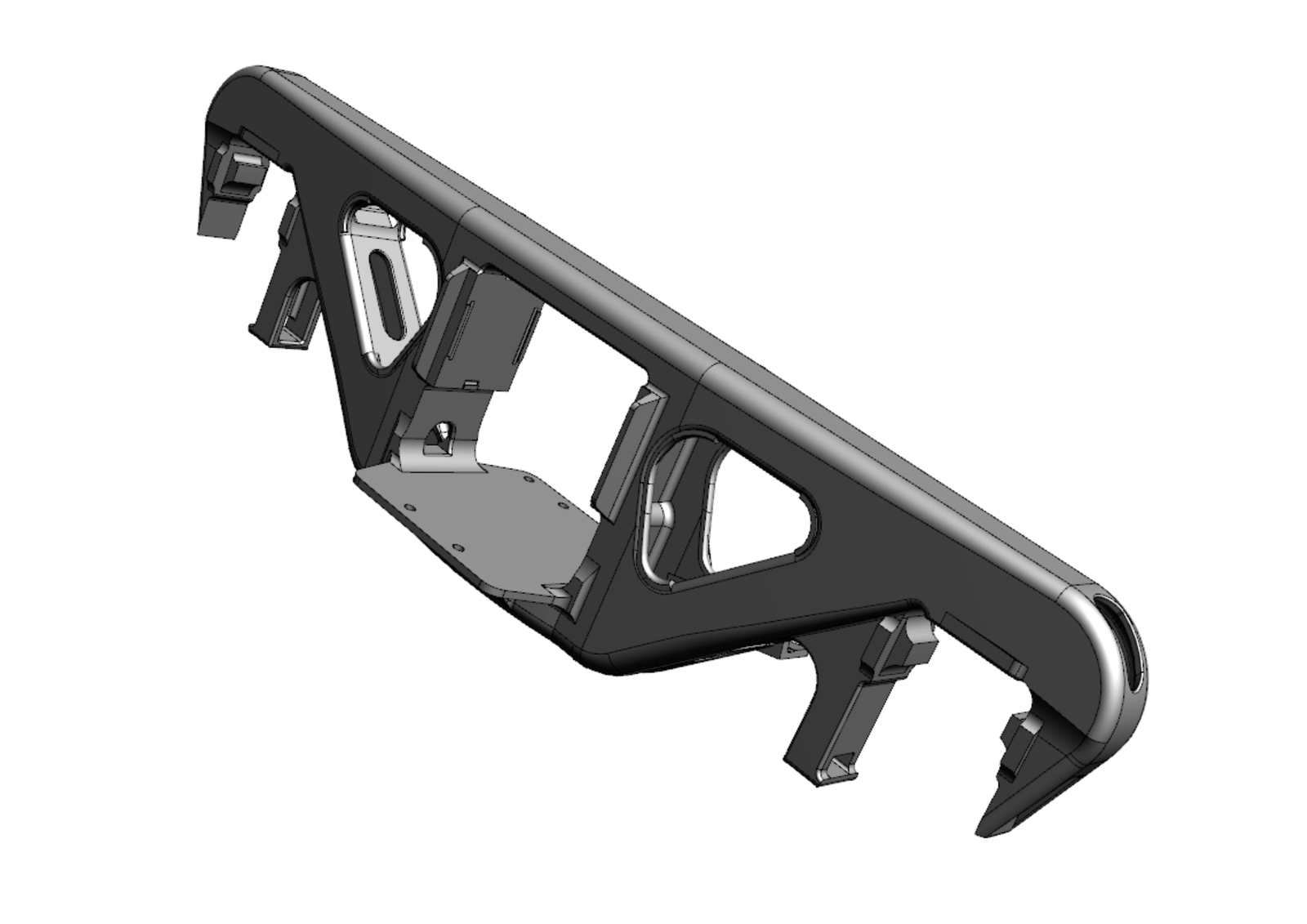

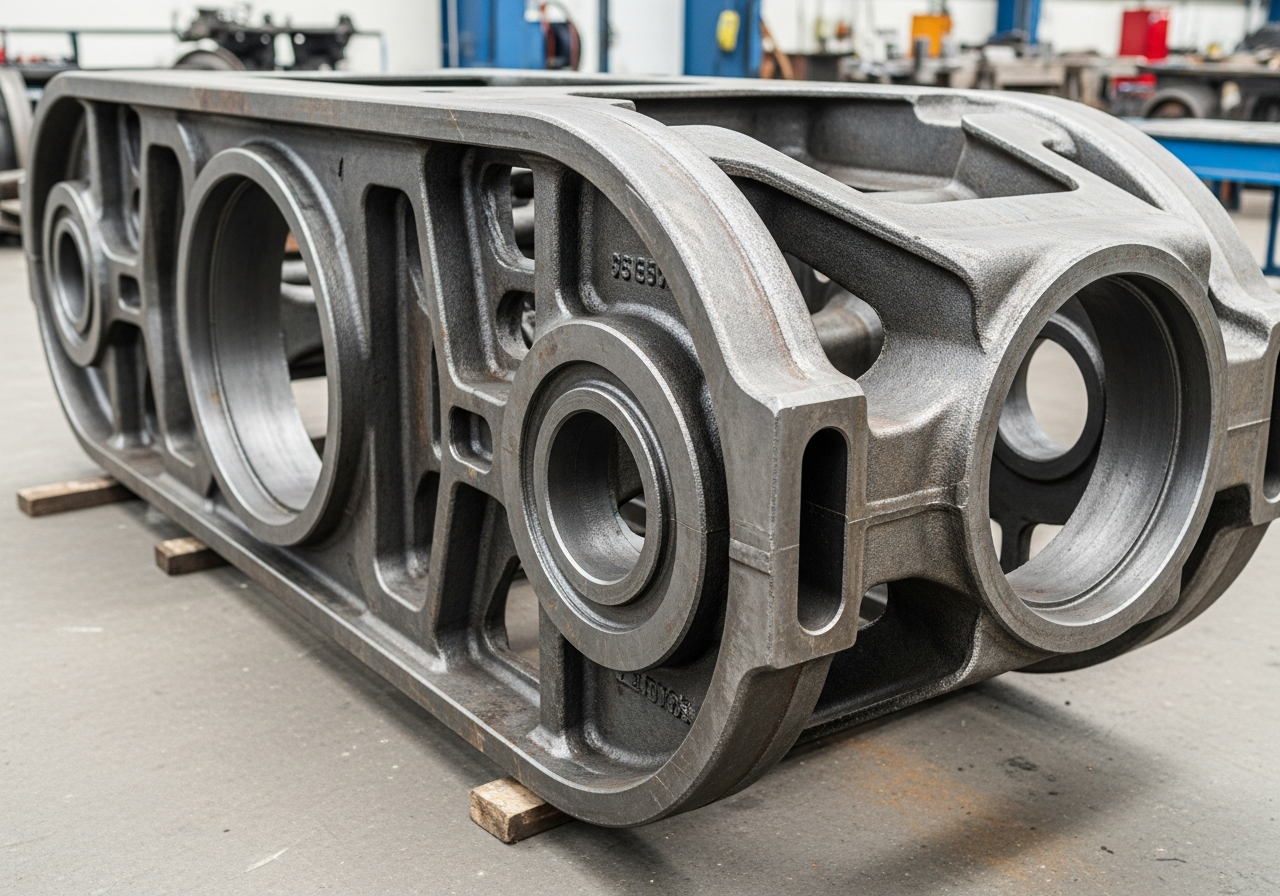

Bogie Side Frame
A high-integrity structural casting designed for railway bogie assemblies. Manufactured using the No-Bake moulding process with Alphaset/Alkyd cores, this component ensures excellent dimensional accuracy and consistent internal geometry. The casting undergoes normalising heat treatment to achieve uniform mechanical properties, improved toughness, and enhanced service life under dynamic rail loads.
- Weight : 450 kg
- Grade : 1
- Process : No Bake
- Core: Alphaset / Alkyd
- Heat Treatment: Normalising
- Inspection: Visual, Chemical, Mechanical, Hardness, Microstructure
PRODUCT

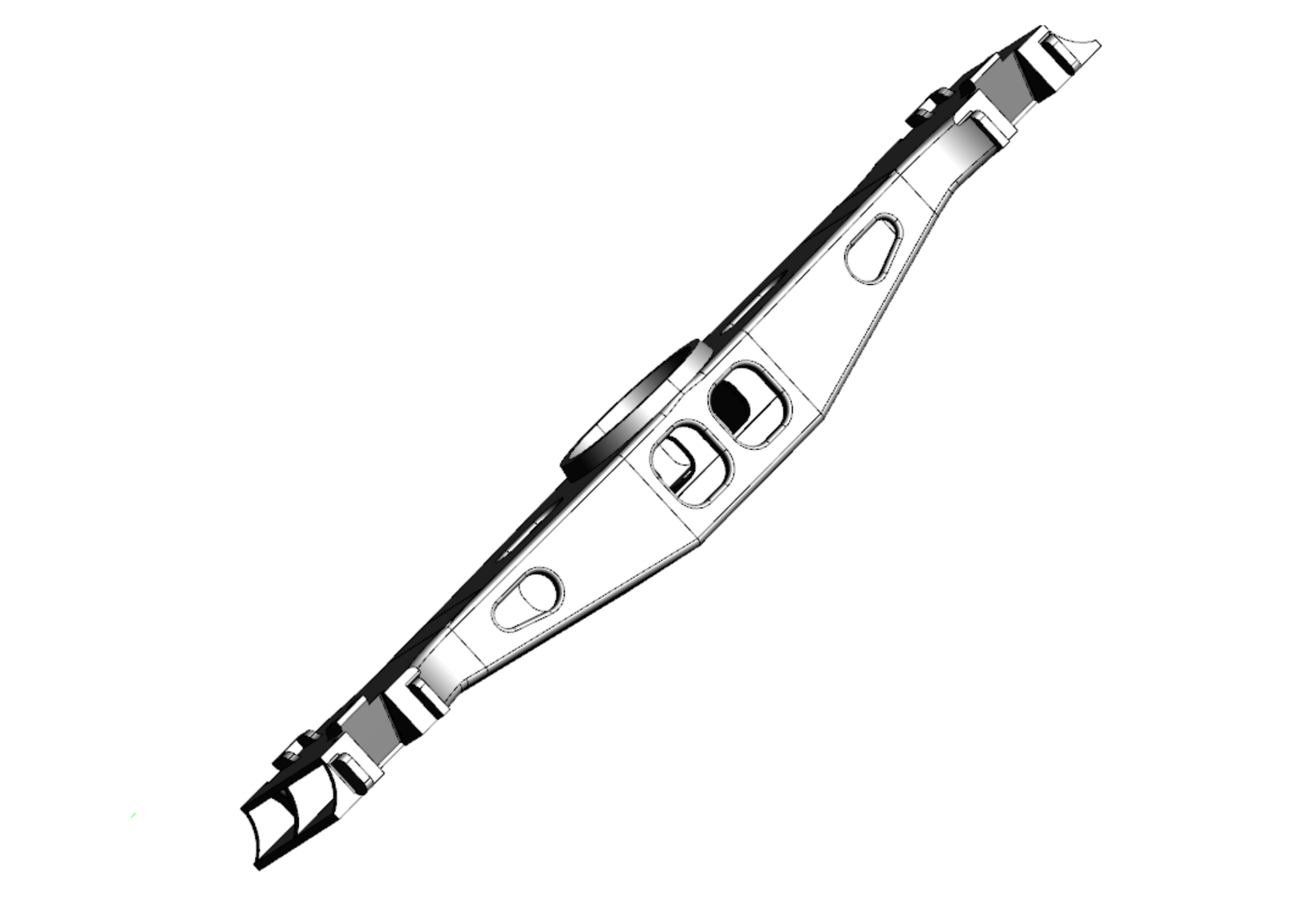

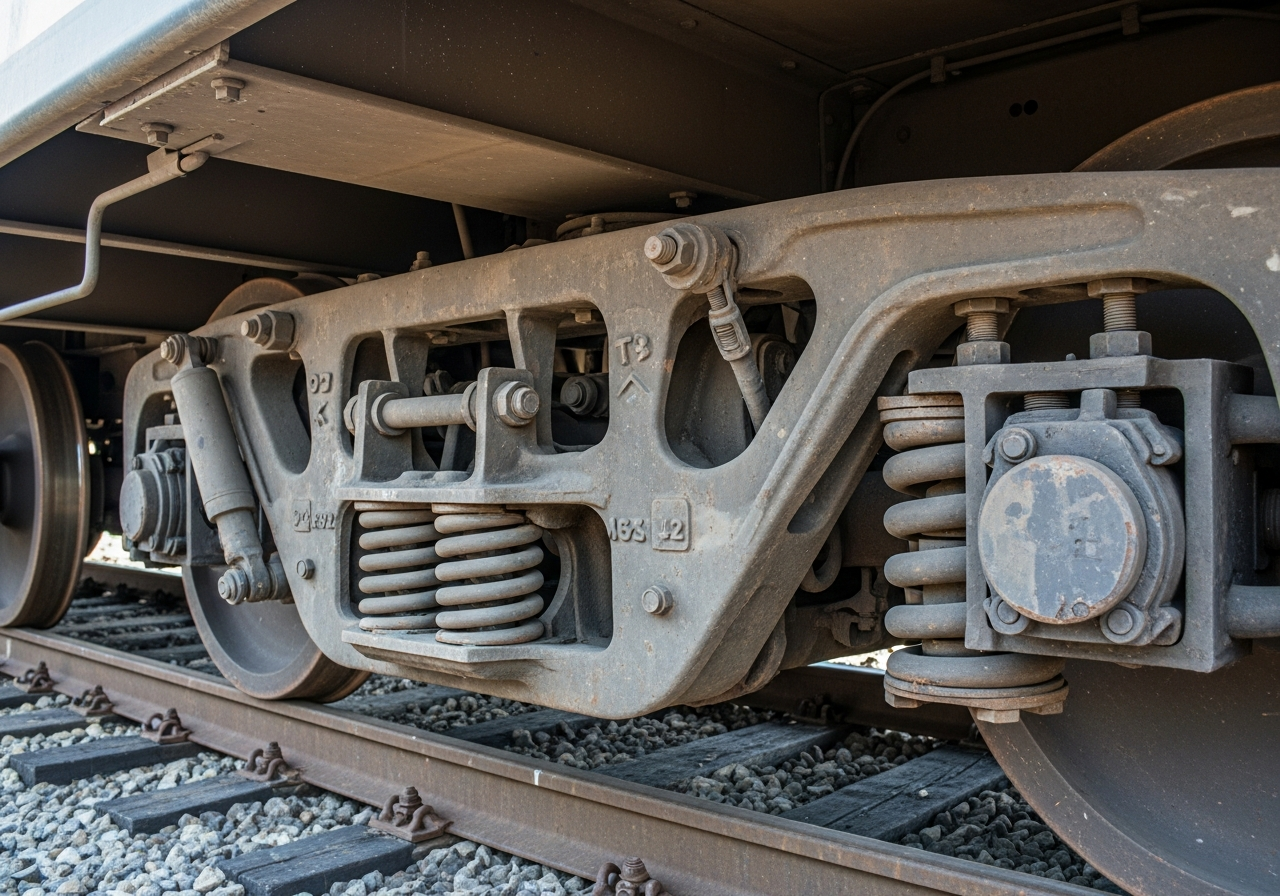

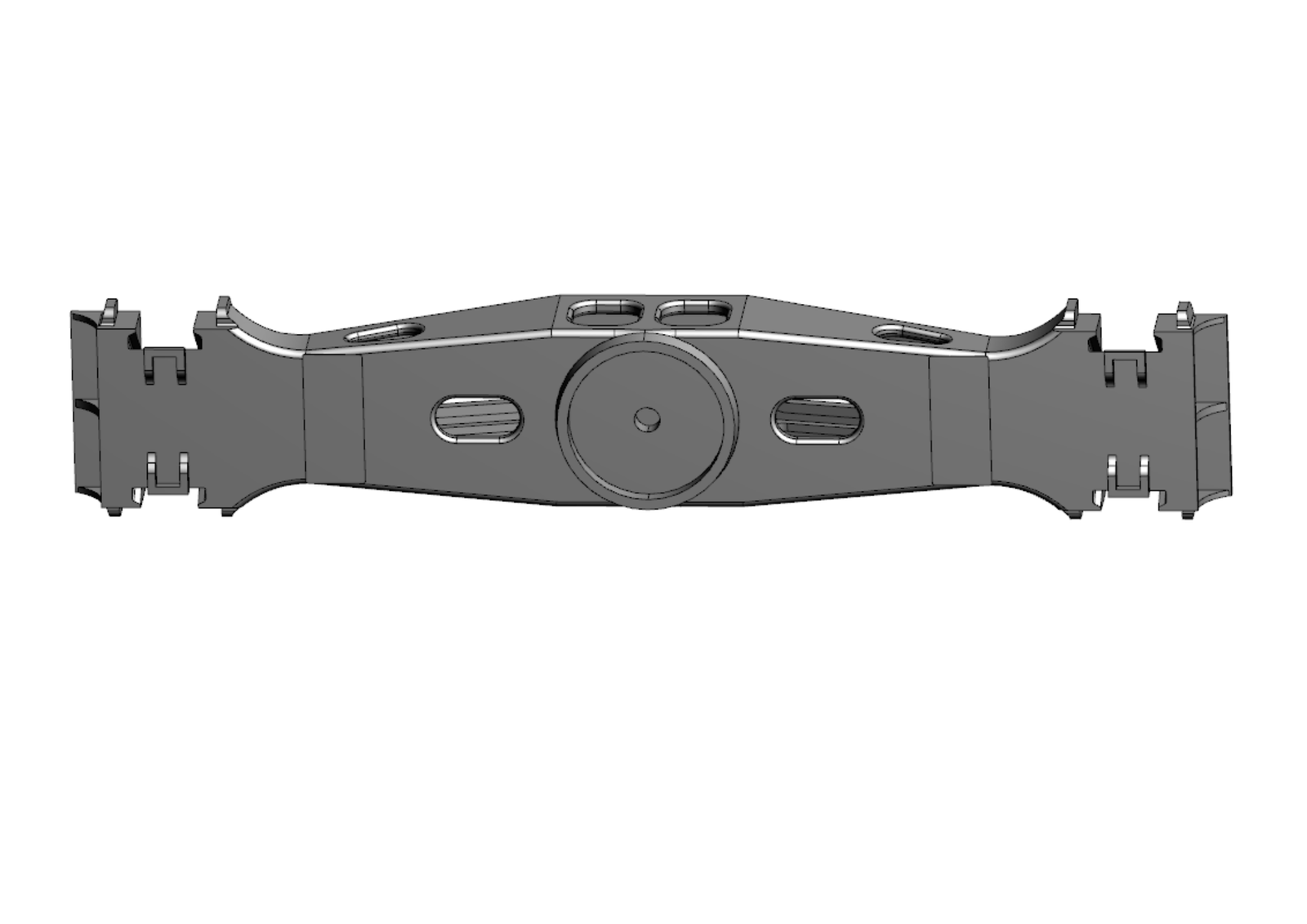

Bolster
A critical component in railway bogie systems, designed to support vertical loads and maintain stability. Produced using No-Bake moulding and Alphaset/Alkyd cores, the bolster offers high dimensional accuracy and structural uniformity. The normalising heat treatment enhances ductility, reduces internal stress, and ensures long-term mechanical reliability.
- Weight: 600 kg
- Grade: Gr. 1
- Process: No-Bake
- Core: Alphaset / Alkyd
- Heat Treatment: Normalising
- Inspection: Visual, Chemical, Mechanical, Hardness, Microstructure
PRODUCT

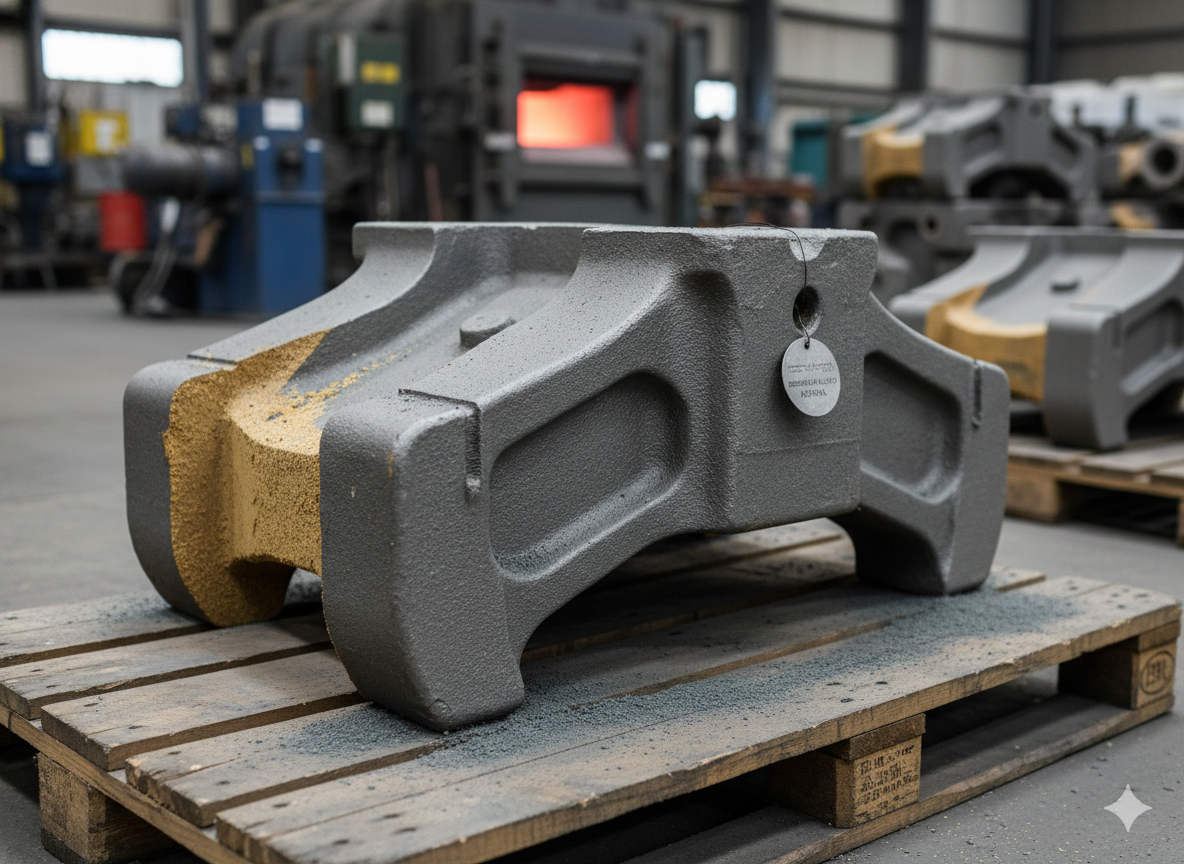

Striker
A medium-sized casting used in railway components requiring impact resistance and operational durability. Manufactured using the Green Sand moulding process with Alphaset/Alkyd cores, it provides cost-effective production with reliable dimensional performance. After normalising, the striker offers improved ductility and stability for demanding mechanical applications.
- Weight: 80 kg
- Grade: B+
- Process: Green Sand
- Core: Alphaset / Alkyd
- Heat Treatment: Normalising
- Inspection: Visual, Chemical, Mechanical, Hardness, Microstructure
PRODUCT

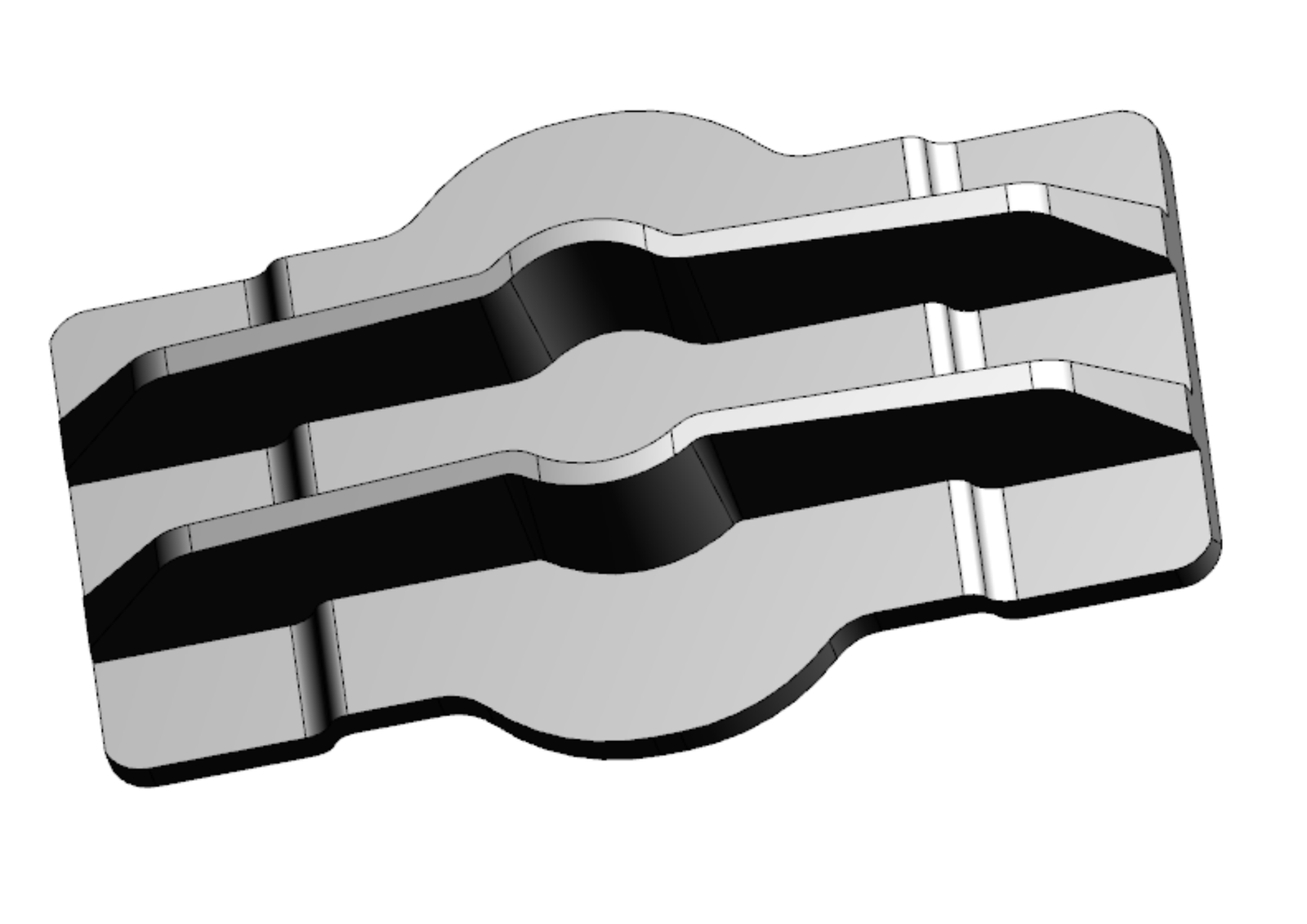

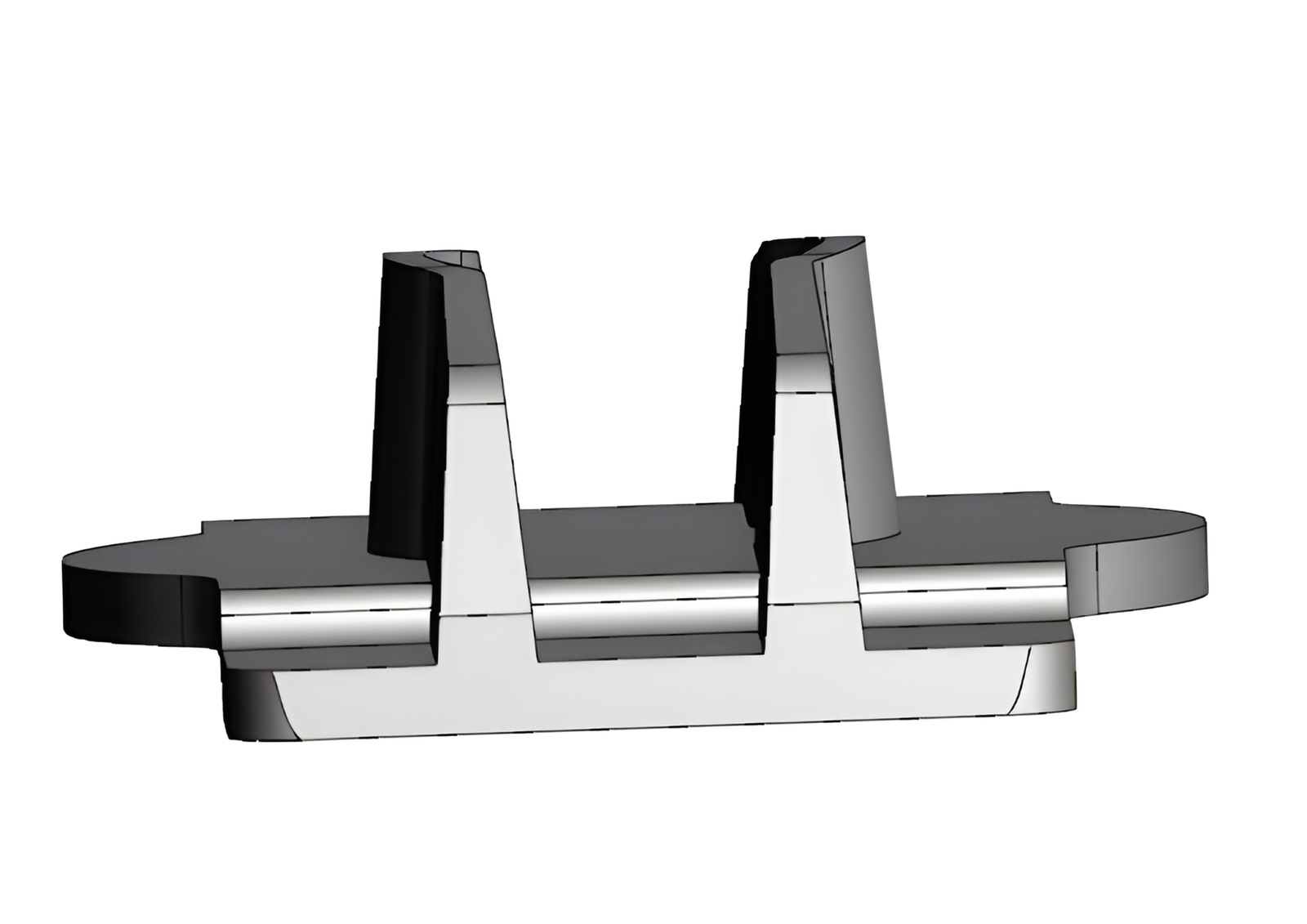

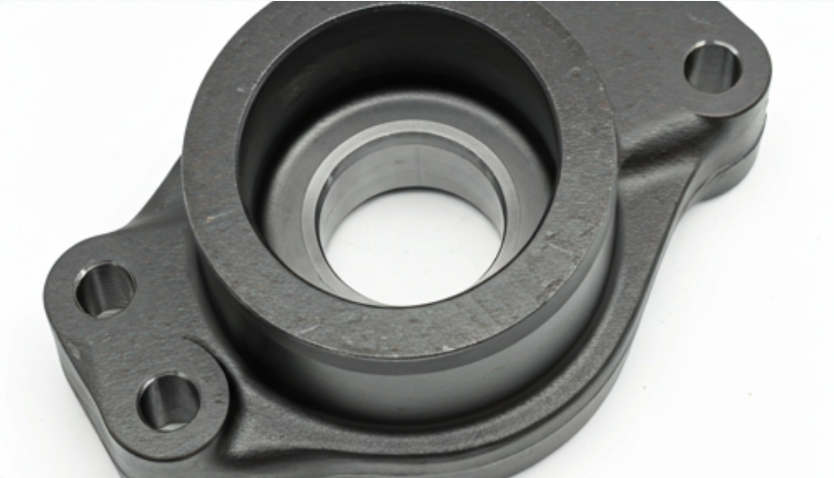

YPS (Yoke Pin Support)
A precision cast component engineered for strength and resistance to operational stress. Produced using Green Sand moulding supported with Alphaset/Alkyd cores, it ensures consistent internal shaping. The component undergoes normalising and quench-tempering, resulting in increased hardness, wear resistance, and mechanical toughness.
- Weight: 75 kg
- Grade: C
- Process: Green Sand
- Core: Alphaset / Alkyd
- Heat Treatment: Normalising
- Inspection: Visual, Chemical, Mechanical, Hardness, Microstructure
PRODUCT

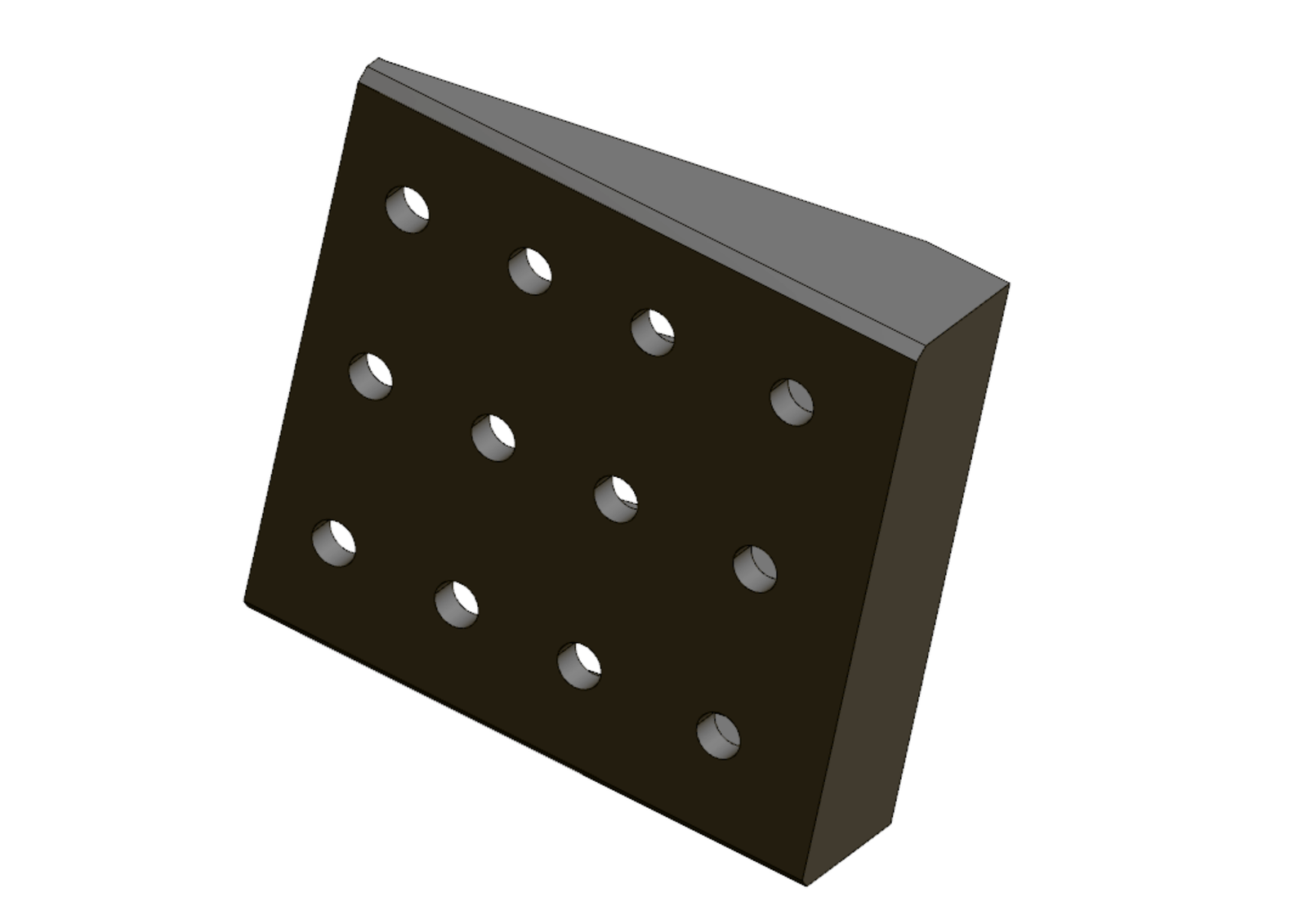

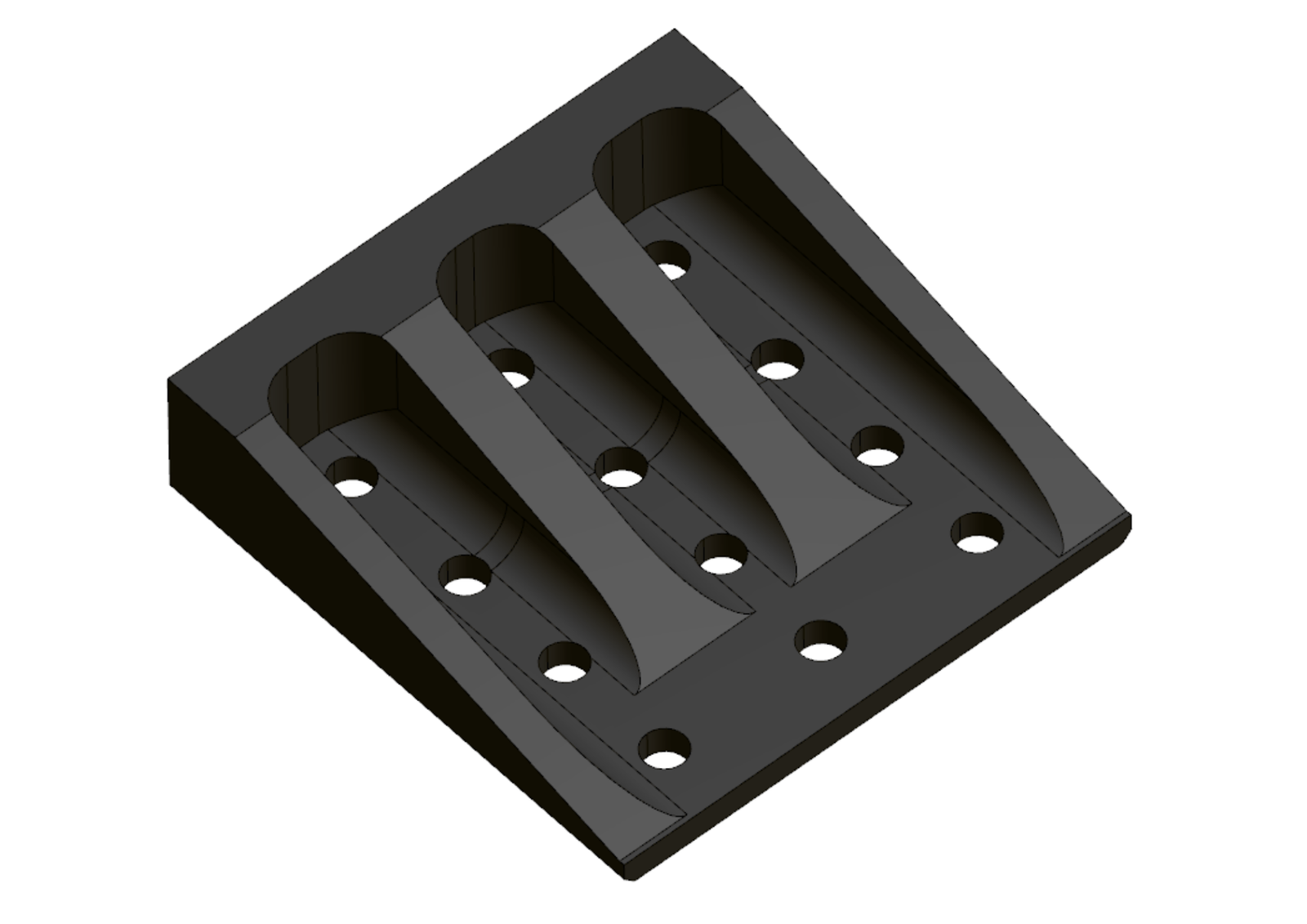

Back Stop
A durable casting used in braking and locking systems where strength and reliability are essential. Manufactured through Green Sand moulding with Alphaset cores, the Back Stop provides dimensional stability and internal soundness. The normalising heat treatment relieves stresses and ensures uniform performance throughout the part’s lifespan.
- Weight: 80 kg
- Grade: B+
- Process: Green Sand
- Core: Alphaset
- Heat Treatment: Normalising
- Inspection: Visual, Chemical, Mechanical, Hardness, Microstructure
PRODUCT

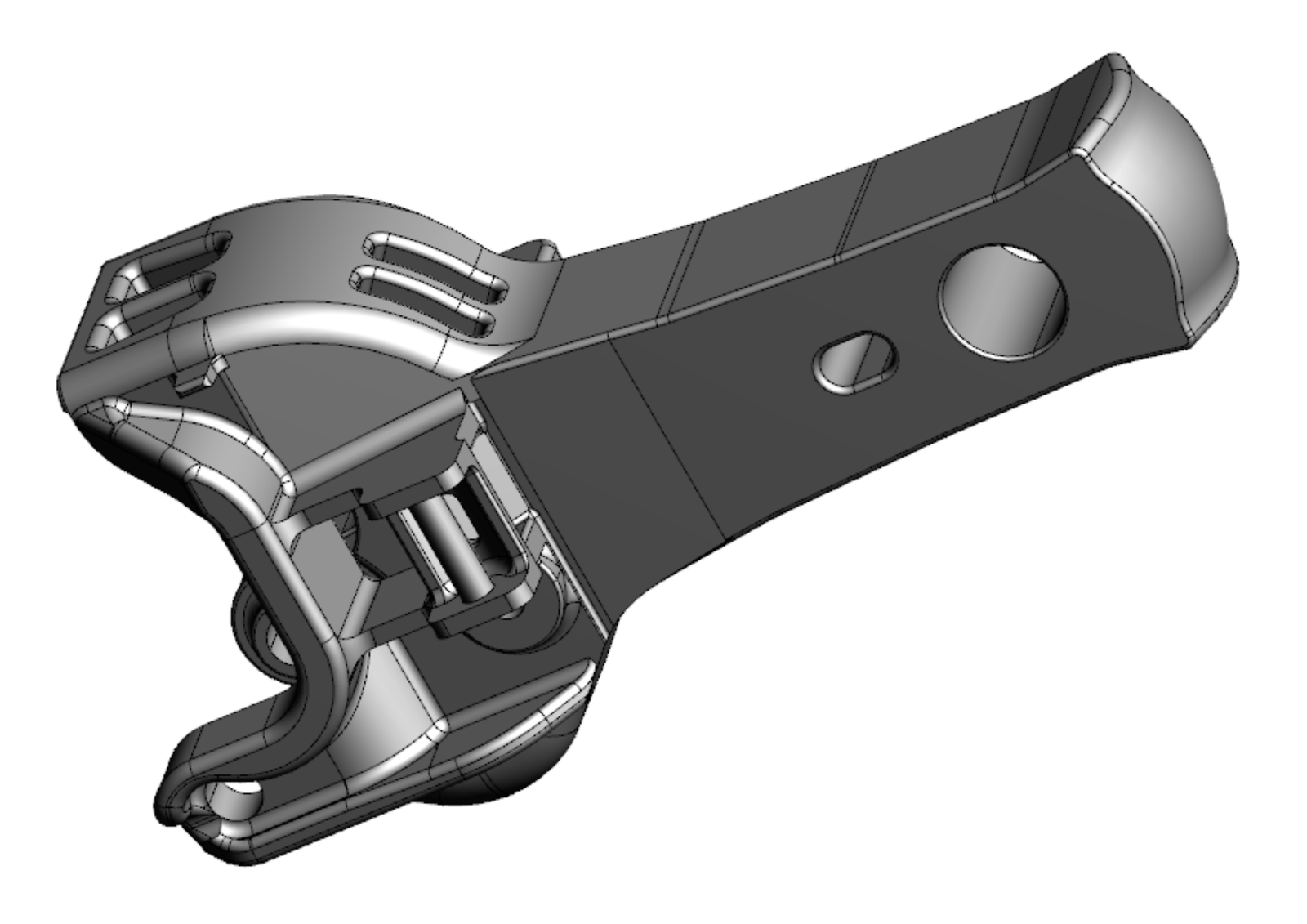

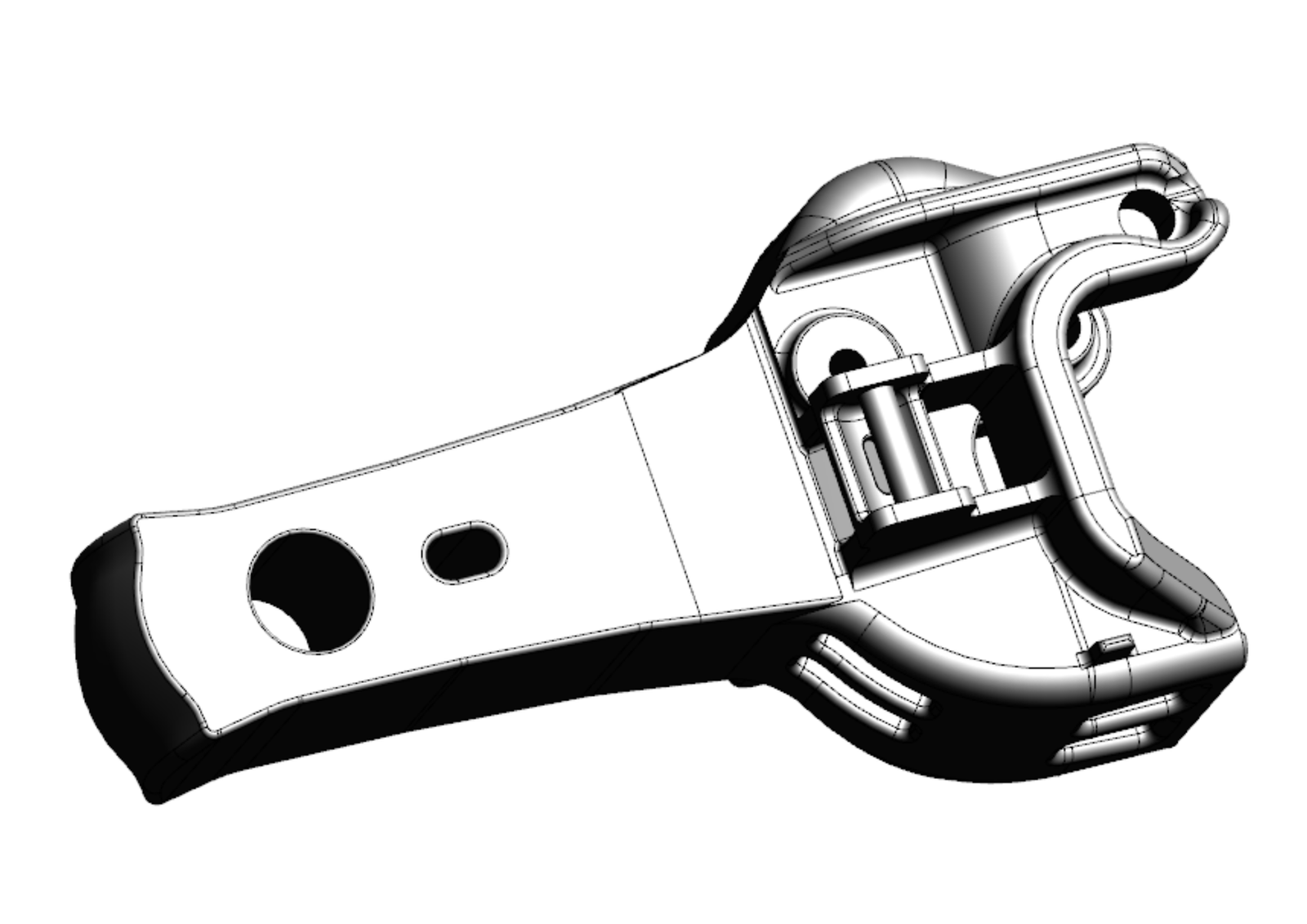

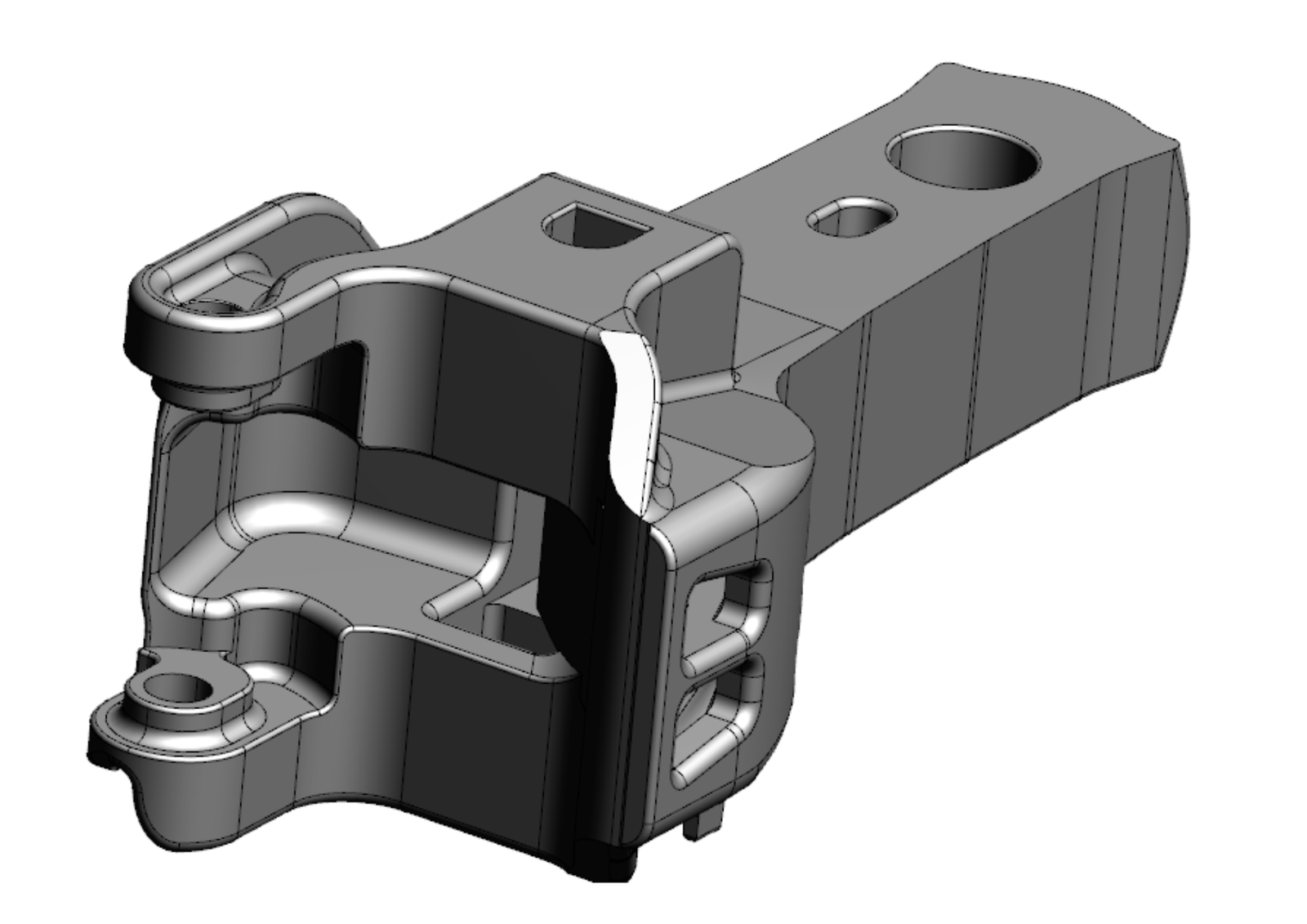

Coupler
A heavy-duty casting designed for railway coupling systems, built for superior load-bearing capacity and operational reliability. Manufactured with Green Sand moulding and Alphaset/Alkyd core technology, it maintains structural integrity under repeated impact forces. The normalising process enhances toughness and dimensional consistency.
- Weight: 165 kg
- Grade: 70BD
- Process: Green Sand
- Core: Alphaset / Alkyd
- Heat Treatment: Normalising
- Inspection: Visual, Chemical, Mechanical, Hardness, Microstructure
PRODUCT

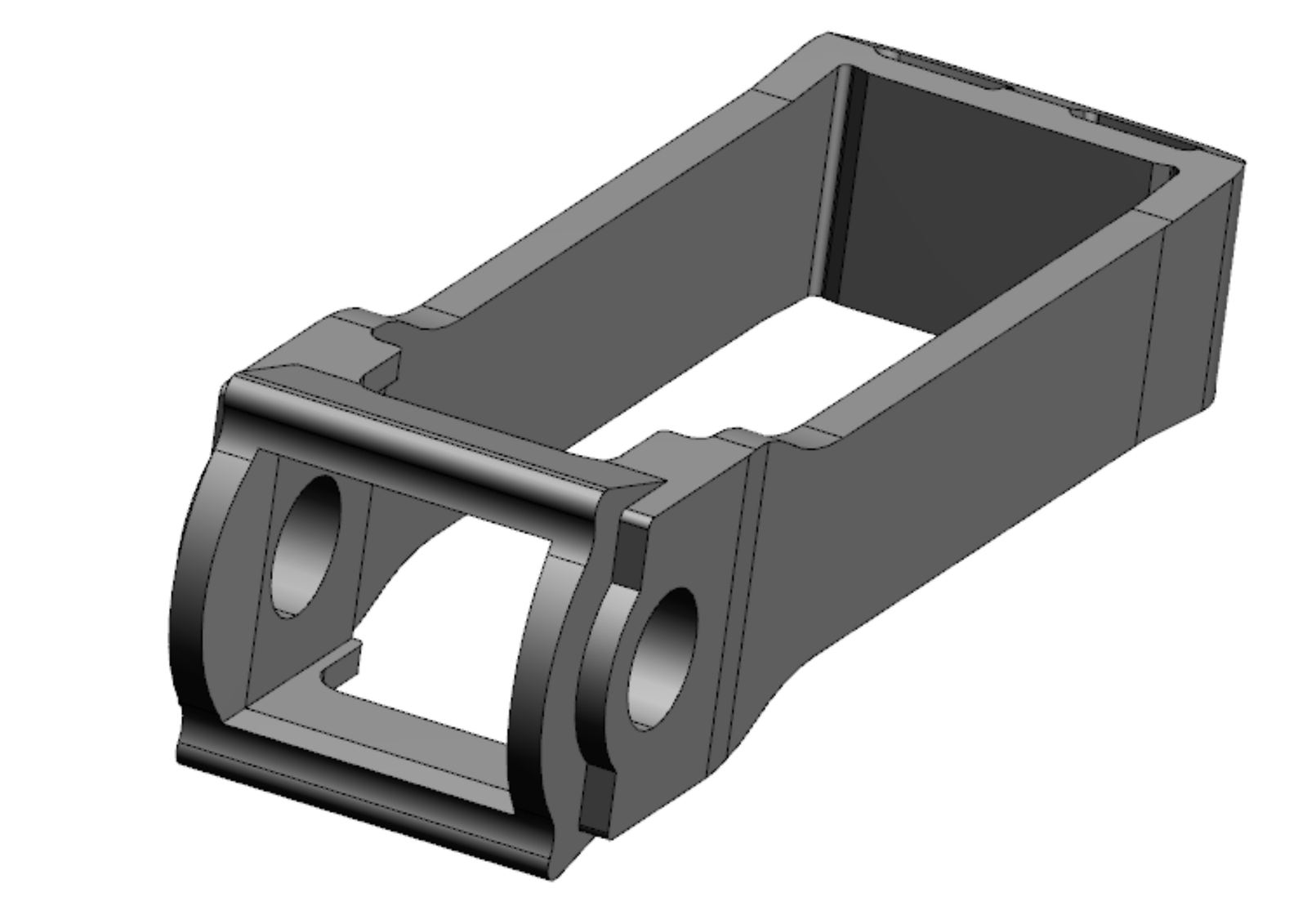

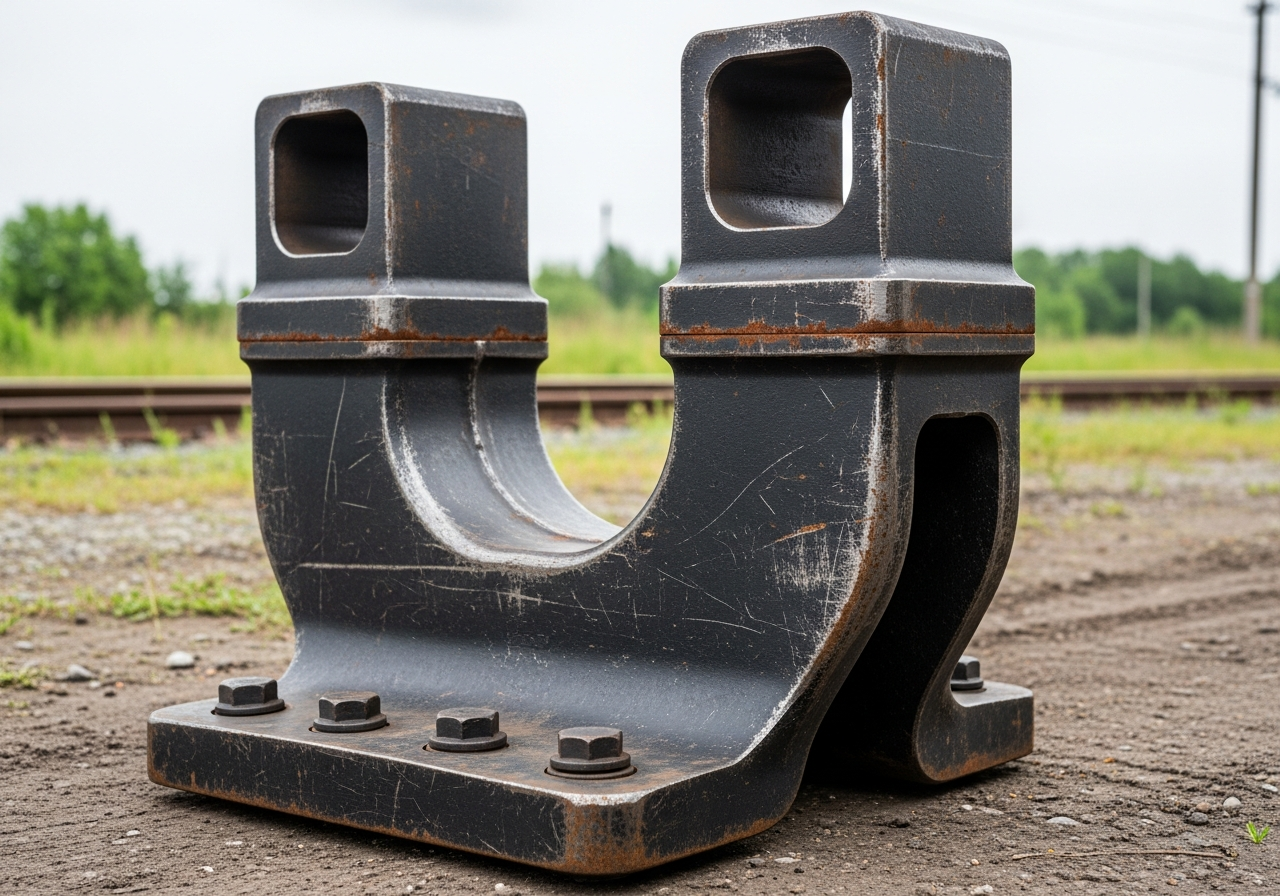

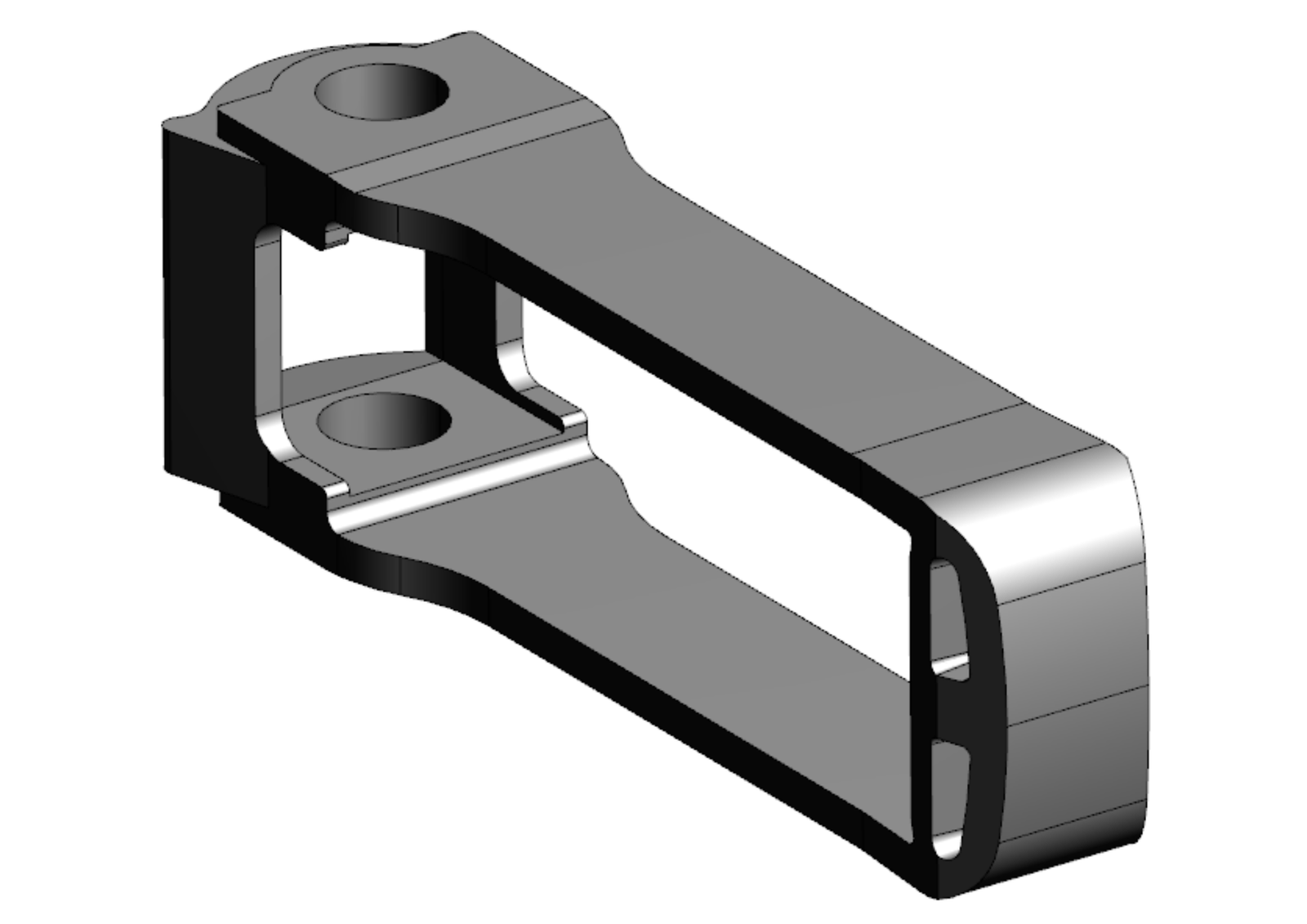

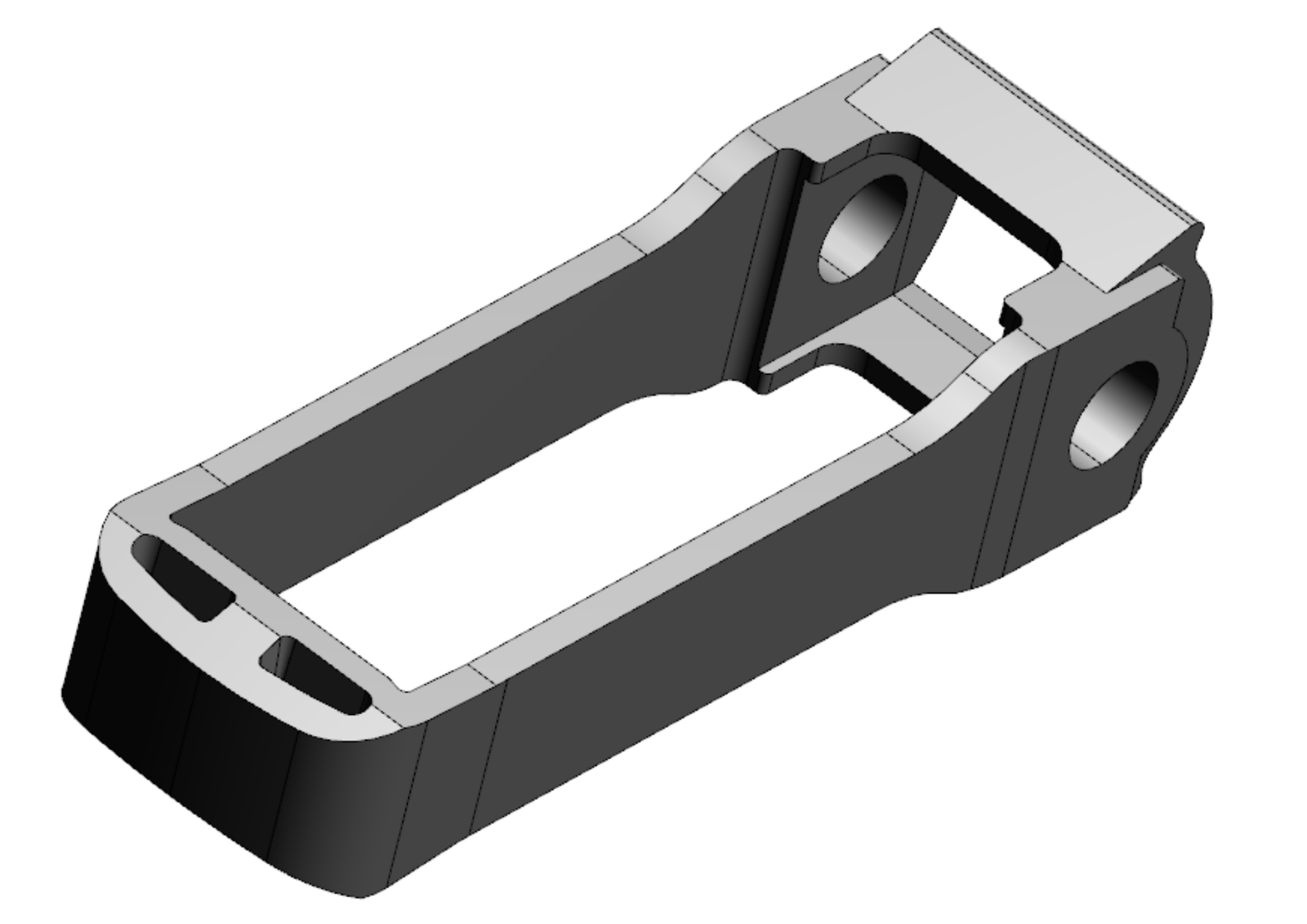

Yoke
A high-strength railway component designed to withstand extreme loads in coupling systems. Formed using the Green Sand moulding process with Alphaset/Alkyd cores, the Yoke offers dimensional accuracy and durable internal structures. It undergoes quenching and tempering, significantly improving wear resistance, toughness, and fatigue strength.
- Weight: 105 kg
- Grade: 70BD
- Process: Green Sand
- Core: Alphaset / Alkyd
- Heat Treatment: Quench + Temper
- Inspection: Visual, Chemical, Mechanical, Hardness, Microstructure
PRODUCT

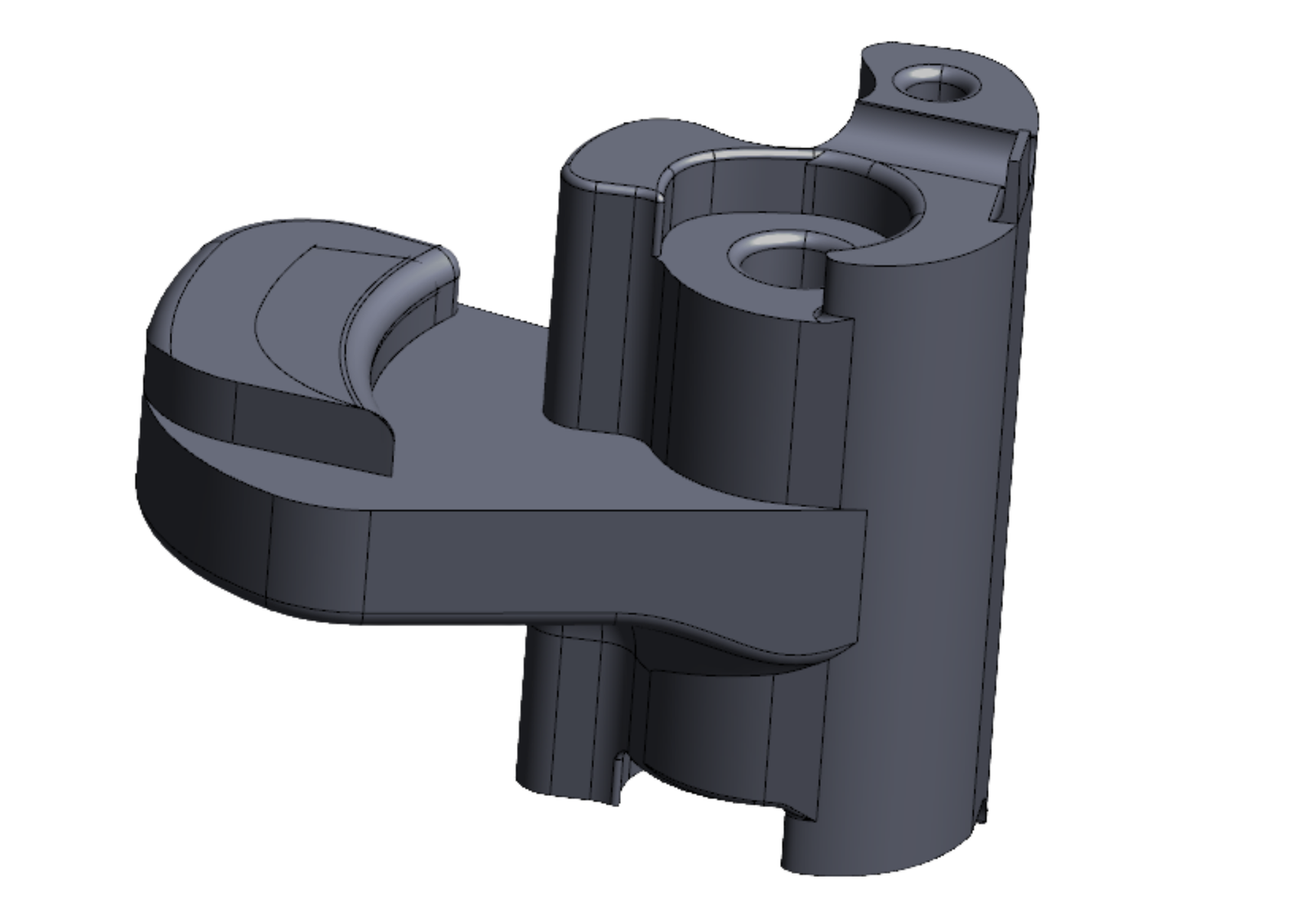

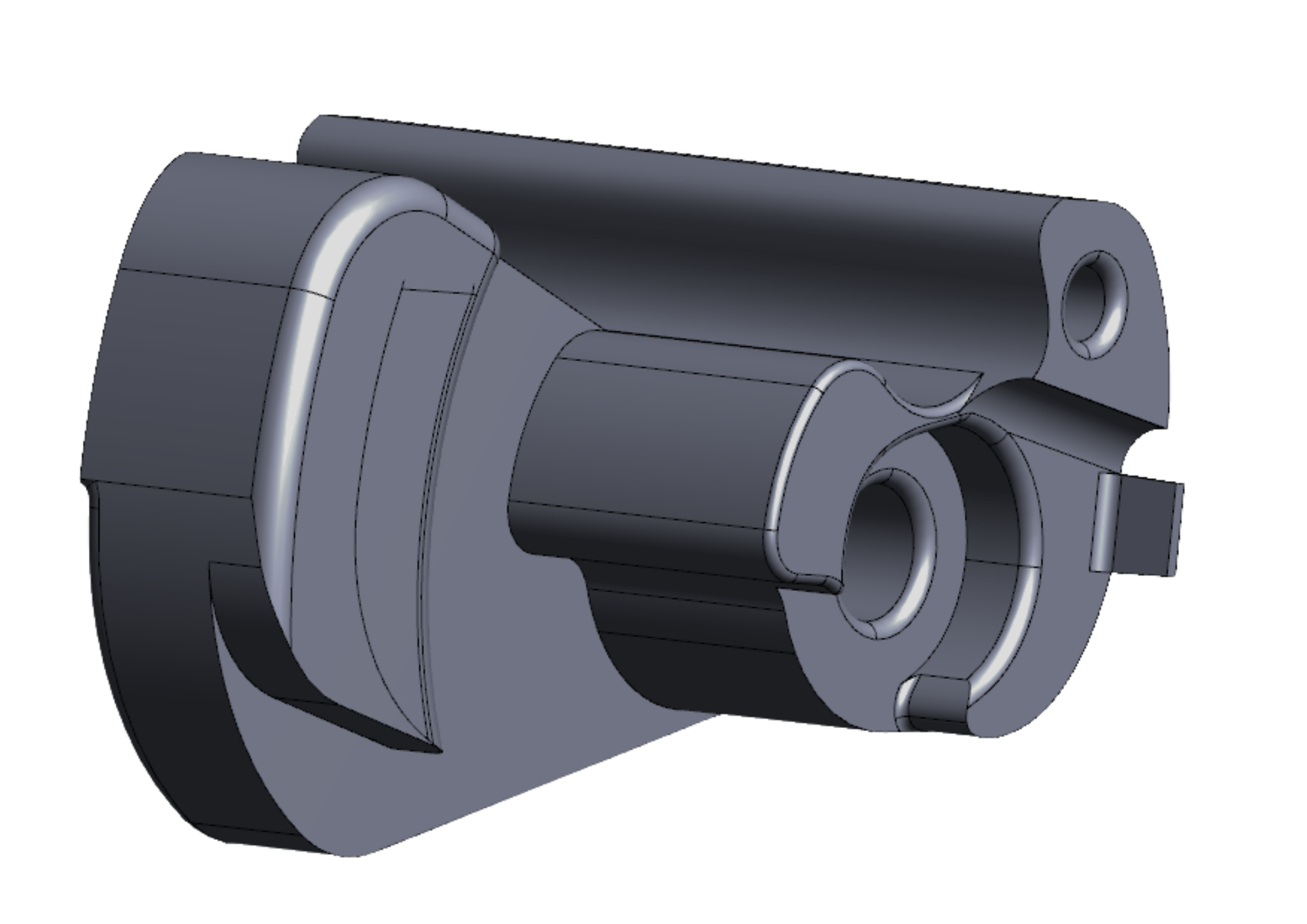

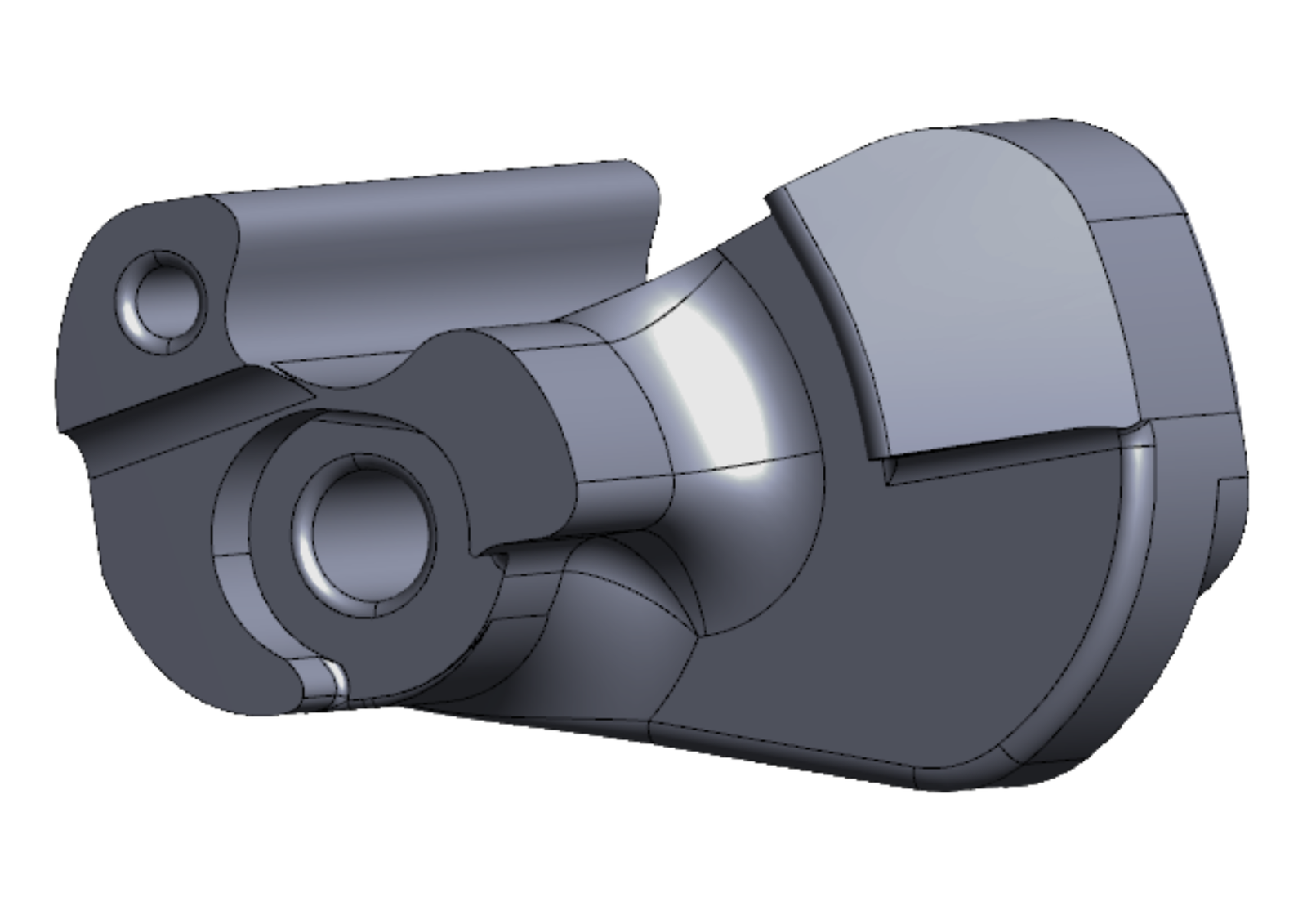

Knuckle
A critical coupling component engineered to perform under dynamic impact and continuous operational loads. Manufactured using Green Sand moulding supported by Alphaset/Alkyd core systems, the Knuckle delivers excellent durability and dimensional consistency. The component is quenched and tempered, ensuring optimal mechanical strength and long service life.
- Weight: 40 kg
- Grade: 70BD
- Process: Green Sand
- Core: Alphaset / Alkyd
- Heat Treatment: Quench + Temper
- Inspection: Visual, Chemical, Mechanical, Hardness, Microstructure
Why Our Process Ensures Reliability
We employ a suite of advanced testing methods to verify the integrity and performance of every casting that leaves our facility.
Spectro Analysis
Hardness Testing
MPI / UT Testing
Dimensional Inspection
Microstructure Analysis
